Recommended coupling contactor

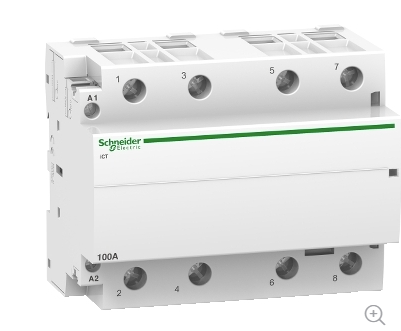

XOLTA recommends using one Schneider Contactor iCT 100a 4no 230V AC (coupling contactorClosed A coupling contactor is a switching device used to connect or disconnect a power source to the main electrical grid. In grid protection systems, it enables safe synchronization and isolation during faults or maintenance.) per XOLTA battery rack for all C&I installations.

The table below lists the maximum AC current per rack, based on system voltage:

Maximum AC current for different battery system versions

Product

Maximum AC current (at 400 VAC)

Maximum AC current (at 380 VAC)

BAT-80/25

37 A

38 A

BAT-80/30

45 A

45 A

BAT-80/50

74 A

76 A

BAT-80/60

90 A

90 A
