Configuring grid codes settings for ABB CM-UFD.M31(M)

The ABB CM-UFD.M31(M) protection relay must be configured per the local grid code. This chapter provides:

1. General configuration steps.
2. Country-specific setting profiles.

These steps outline the flow:

1. Power the device with 230 V AC or 24 V DC.

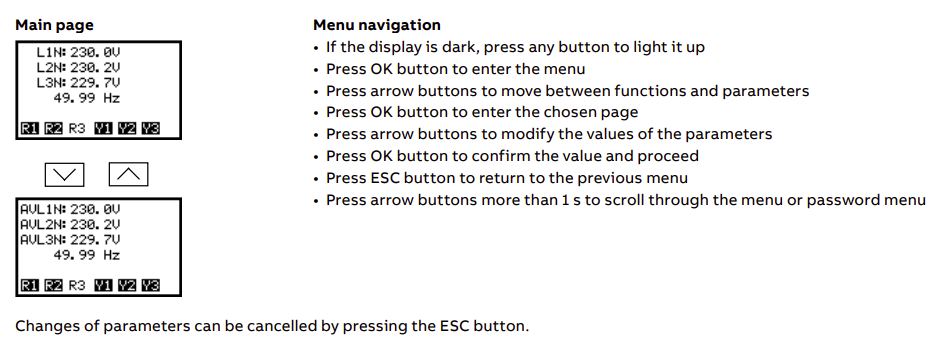

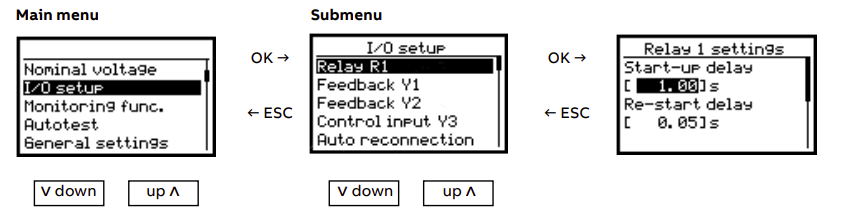

2. Access the menu. It looks as follows:





3. Apply the general settings, independently of the grid codes.
4. Apply the country-specific settings.
