General information about BAT-80 AC
BAT-80 AC is intended for outdoor installation.
|
Property |
Description |
|---|---|
|
Battery rack part number |
101141 |
|
Part numbers based on type |
25 kW: 108010 30 kW: 108011 50 kW: 108012 60 kW: 108013 |
|
Battery type |
LiFe P04 (LFP) |
|
Nominal battery DC voltage |
768 V DC (range: 720-855 V DC) |
|
Main power input and output |
3 x 400 V AC |
|
Control power input |
1 x 230 V AC |
|
Weight |
Appr. 1020 kg (when containing 1 inverter) |
|
Impact test (IEC 62262) |
IK08 |
|
Dimensions |
H2170 x W845 x D800 |

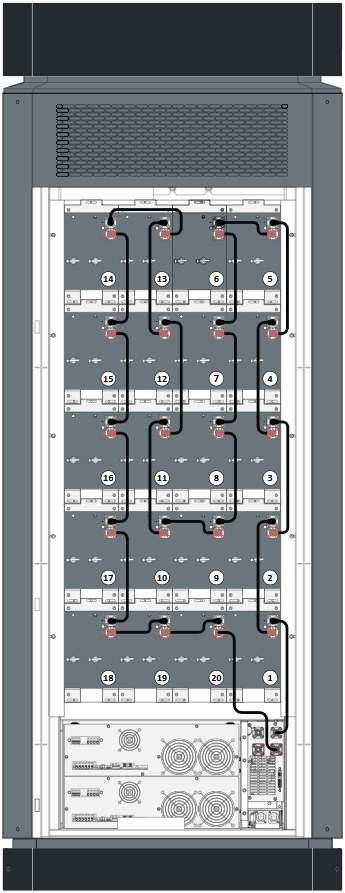

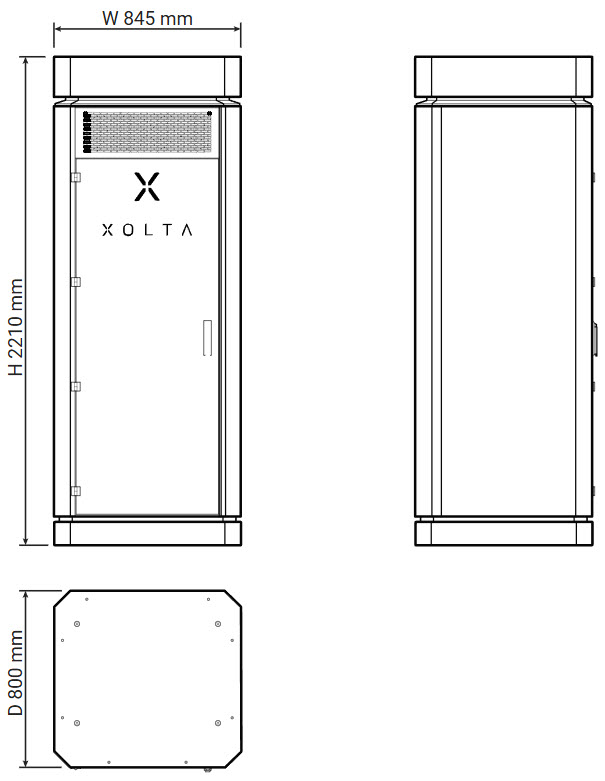

Left: BAT-80 AC front. Right: Dimensions.
